Product Name: 65 Ton Lowbed Semi Trailer
Overall Dimensions: 14,500 × 3,050 × 3,260 mm
Loading Platform Length: 10 m
Payload Capacity: 65 tons
Material: Q355 Steel
Main Specifications:
• Main Beam: 550 mm height; 16 mm upper flange; 16 mm lower flange; 12 mm web plate
• Side Beam: 25# channel steel
• Cross Beam: 12# channel steel
• Platform: 4 mm checkered steel plate
• Axles: BPW 14T × 3, 2,180 mm track width, 220 mm brake pads, ABS made in China
• Suspension: CLMC Huajun reinforced suspension

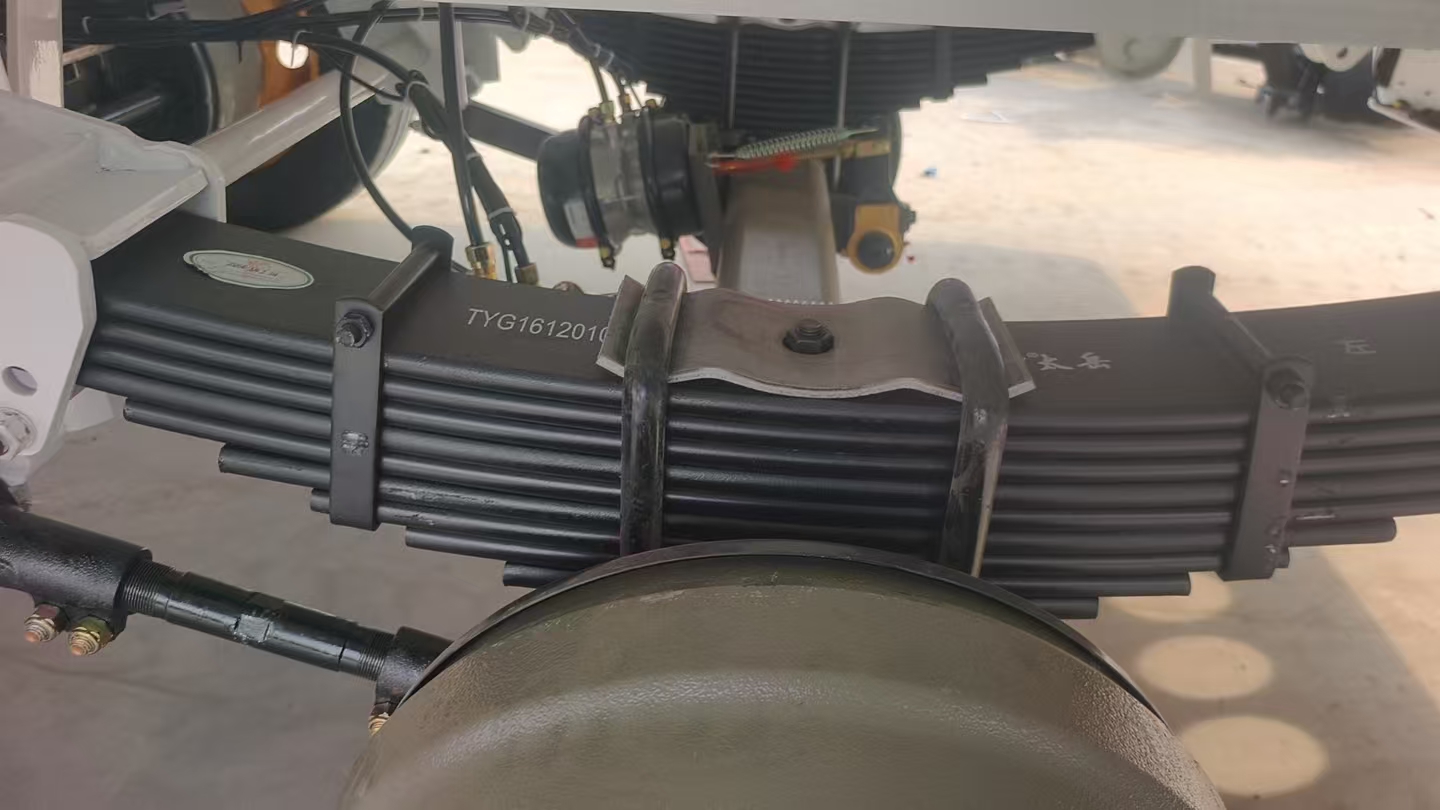

• Leaf Springs: 6 sets; 100 mm × 16 mm; 10 leaves per set; overslung type

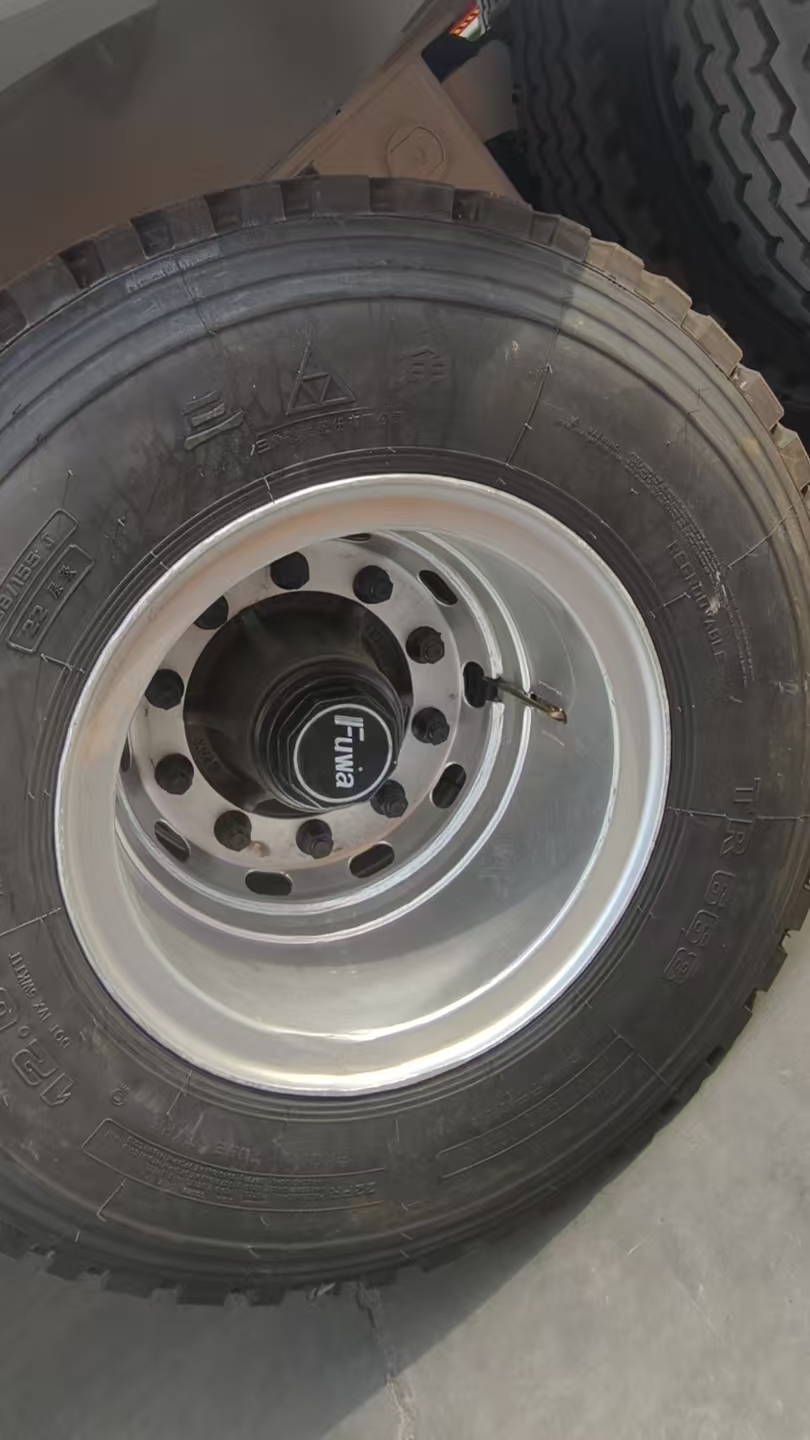

• Tires: Triangle 12.00R20-22PR × 13
• Rims: 8.5-20 × 12
• Relay Valve: WABCO
• Landing Gear: JOST A400, two-side operation, single-action
• Electrical System: 24V, 7-way wire harness, including rear lights, turn signals, brake lights, reflective devices, side lights, and one 6-core standard cable set
Key Features:
1. 65-ton payload capacity for heavy machinery and oversized cargo transport.
2. Reinforced three-axle chassis and high-strength steel structure for reliable load-bearing performance.
3. Lowbed platform with mechanical ramps for convenient loading and unloading.
4. Equipped with ABS, WABCO relay valve, and a complete lighting and reflective safety system.
