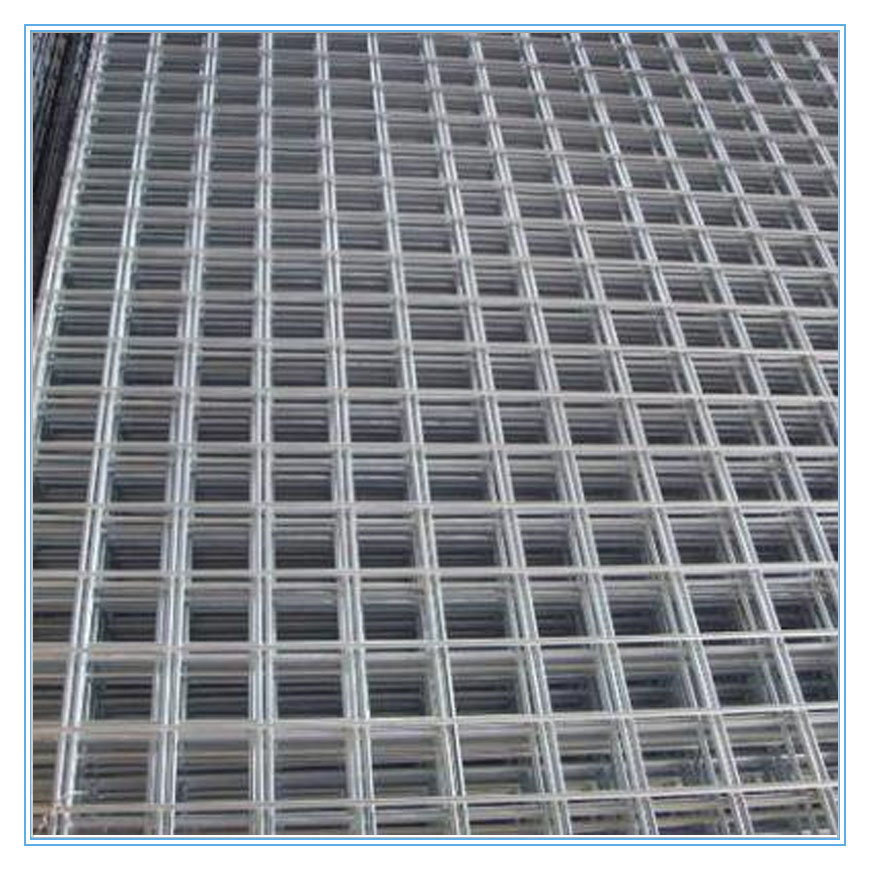

Welded Wire Mesh
Type of welded wire mesh

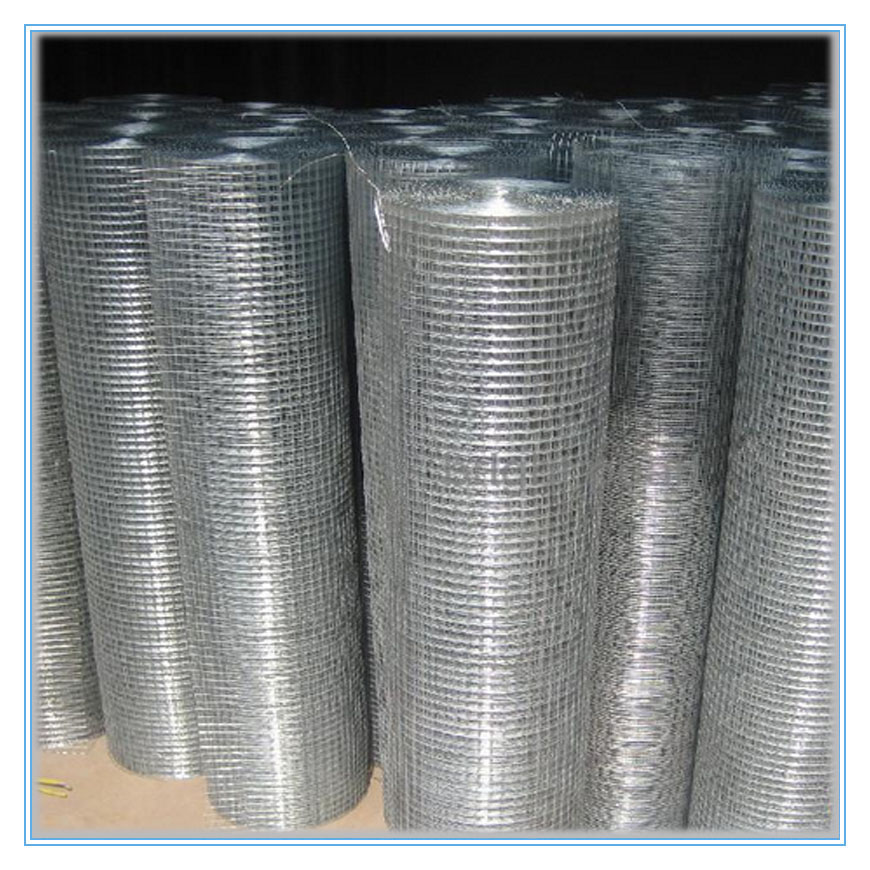

• Electro galvanized after or before welding
• Hot dipped galvanized after or before welding
• PVC coated galvanized welded wire mesh
| Specification List of Welded Wire Mesh | ||
| Opening |
Wire Diameter<BWG> |
|
| In inch |
In metric unit(mm) |
|
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 9,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" |
19.1mm x 19.1mm |
16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm |
12,13,14,15,16 |
|
Galvanized Fencing Mesh |
||
| Opening |
Wire Diameter<BWG> |
|
| In inch | In metric unit(mm) | |
| 2" x 3" | 50mm x 75mm | 2.0mm,2.5mm,1.65mm |
| 3" x 3" | 75mm x 756mm | 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
| 2" x 4" | 50mm x 100mm | 2.11mm,2.5mm |
| 4" x 4" | 100mm x 100mm | 2.0mm,2.5mm |
|

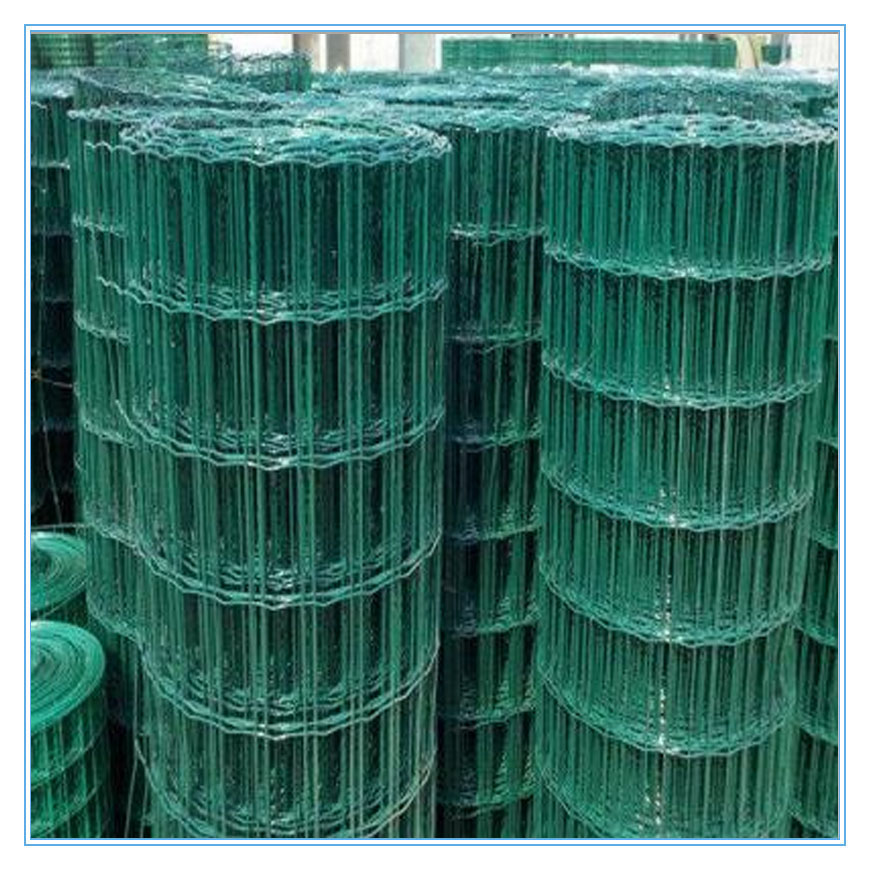

PVC Coated Welded Mesh |
||
|
Opening |
Wire Diameter<BWG> |
|
|
In inch |
In metric unit(mm) |
|
|
1/2" x 1/2" |
12.7mm x 12.7mm |
16,17,18,19,20,21 |
|
3/4" x 3/4" |
19mm x 19mm |
16,17,18,19,20,21 |
|
1" x 1" |
25.4mm x 25.4mm |
15,16,17,18,19,20 |
Technical Note: Standard roll length: 30m width: 0.5m to 1.8m
