Coil Roofing nails
If you have any questions please contact Mingzong Hardware Sales Team.

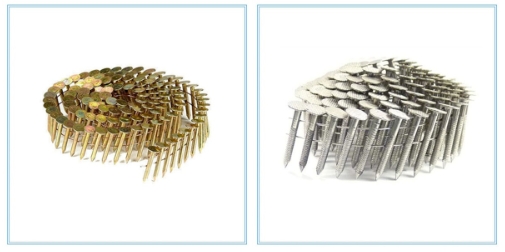

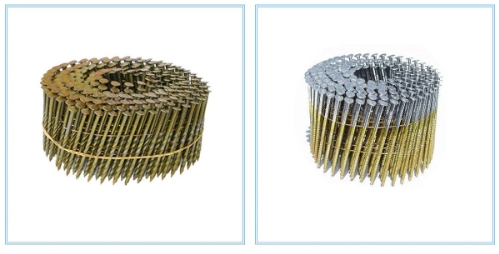

Coil Nails
Coil nails are widely used for most crating and pallet siding and fencing applications. Coil nails are also known as coil wire nails,coil roofing nails,collated coil nails or Pneumatic coil nails. Coil nails can be made with different shank such as Smooth shank coil nails,twisted shank coil nails,screw shank coil nails,spiral shank coil nails or ring shank coil nails.
Common size of Coil Wire Nails
| Shank | 0.083’’ | 0.090’’ | 0.099’’ | 0.113’’ | 0.120’’ | 0.131’’ |
| 2.1 mm | 2.3 mm | 2.5 mm | 2.87 mm | 3.05 mm | 3.33 mm | |
| Length | 31.8-50.8mm | 38.1-57.2mm | 44.4-63.5mm | 57.2-76.2mm | 60.3-95.3mm | 76.2-101.6mm |
| 1 1/4’’-2’’ | 1 1/2’’-2 1/4’’ | 1 3/4’’-2 1/2’’ | 2 1/4’’-3’’ | 2 3/8’’-3 3/4’’ | 3’’-4’’ | |
| Surface |
ELECTRONIC GALVANIZED/HOT DIPPED/MECHANICAL GALVANIZED |
|||||
Common size of coil roofing nails.
| Shank | 0.120’’ | 0.120’’ | 0.120’’ | 0.120’’ | 0.120’’ | 0.120’’ |
| 3.05 mm | 3.05 mm | 3.05 mm | 3.05 mm | 3.05 mm | 3.05 mm | |
| Length | 19.05mm | 22.23mm | 25.40mm | 31.75mm | 38.10mm | 44.45mm |
| 3/4’’ | 7/8’’ | 1 ’’ | 1 1/4’’ | 1 1/2’’ | 1 3/4’’ | |
| Surface | ELECTRONIC GALVANIZED/HOT DIPPED/MECHANICAL GALVANIZED | |||||
